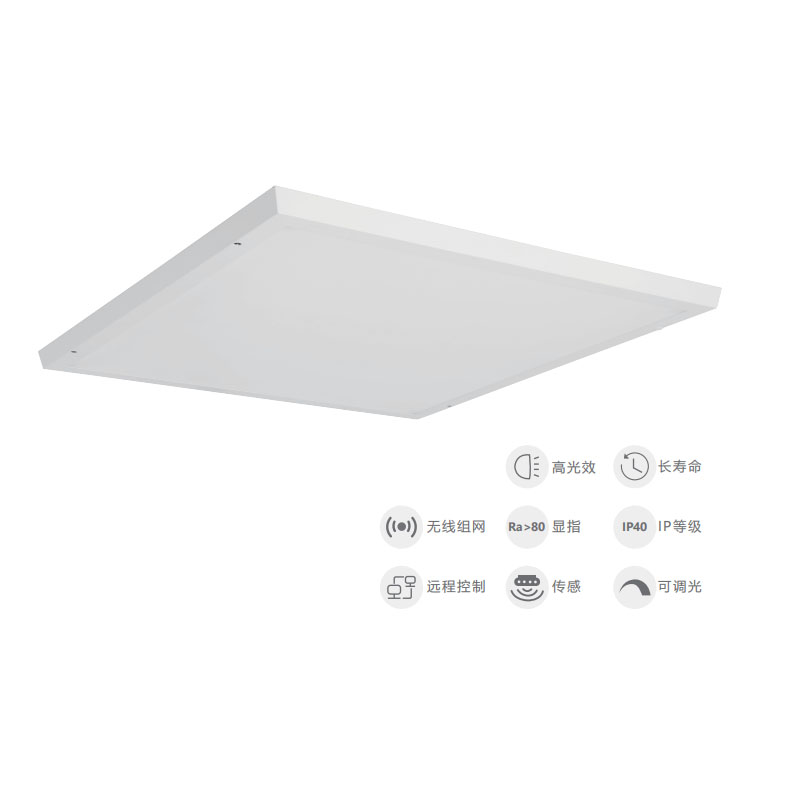

Clean-type panel light

Our AI smart lighting product portfolio covers a full range of fixtures, including panel lights, LED tubes, tri-proof bracket lights, downlights, high bay lights, floodlights, street lights, high-bay platform lights and professional photography lights.

Product Features:

Adopts professional optical lens for higher light efficiency and uniform light output.
The side frame design is resistant to deformation, ensuring flat installation.
Stable light output with no stroboscopic light, effectively improving eye comfort in the working environment.
High luminous efficiency up to 160lm/W, eco-friendly and energy-saving.
Supports intelligent control and wireless networking, with 0-100% stepless dimming and smart APP cloud control.

Technical Parameters:

Material: Aluminum alloy frame, powder-coated base plate
Luminous Efficiency: 160LM/W
Color Temperature: 4000K / 6500K
Color Rendering Index: ＞80
Power Factor: ＞0.95
Color Tolerance: ＜5
Operating Temperature: -25℃ ~ 45℃
Protection Class: IP40
Installation Method: Ceiling-mounted
Service Life: 50,000 hours (L70)

Inquiry

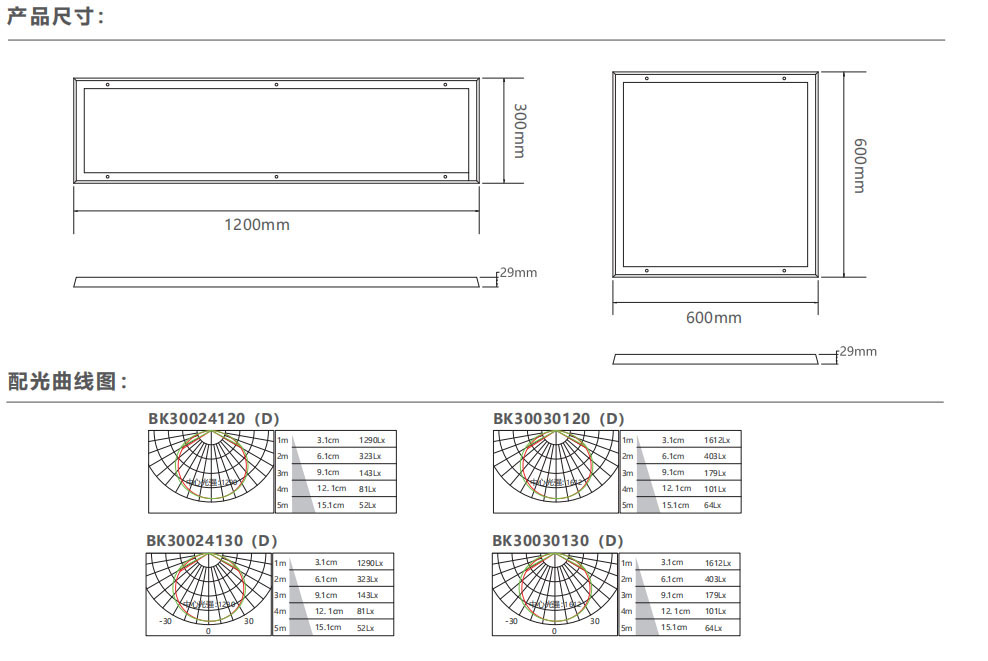

Model No.	Size_mm	Power	Efficacy_LM/W	Total Luminous Flux_LM	CRI	Function	Notes
BK30024120 (D)	614×614×25	24W	160	3840	>80	Non-dimmable / 2.4G Smart Dimmable	"D" stands for Wireless Smart Dimming
BK30030120 (D)	614×614	30W	160	4800	>80	Non-dimmable / 2.4G Smart Dimmable
BK30035120 (D)	614×614×25	35W	160	5600	>80	Non-dimmable / 2.4G Smart Dimmable
BK30024130 (D)	300×1200×25	24W	160	3840	>80	Non-dimmable / 2.4G Smart Dimmable
BK30030130 (D)	300×1200×25	30W	160	4800	>80	Non-dimmable / 2.4G Smart Dimmable
BK30035130 (D)	300×1200×25	35W	160	5600	>80	Non-dimmable / 2.4G Smart Dimmable
