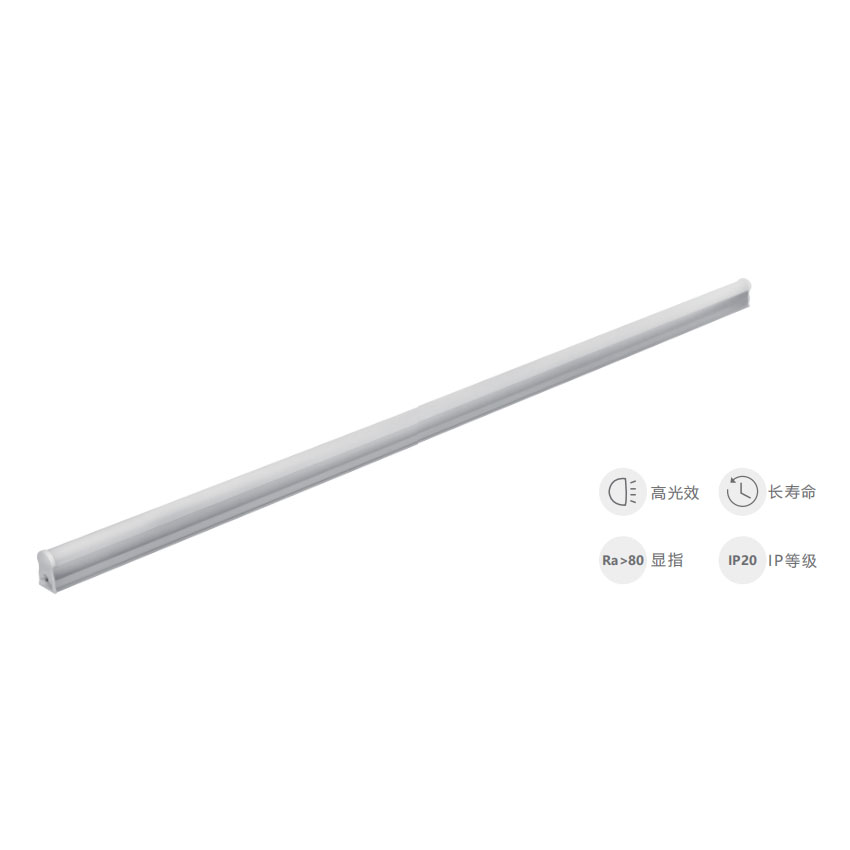

T5 integrated bracket light series
T5 LED integrated bracket light integrates high-efficiency driving, safe and reliable housing, professional lighting distribution design, and superior light efficiency.
Product Features:
Optical-grade PC material with high diffusion and light transmittance
No visible flicker, seamless connection
Luminous efficacy up to 160 lm/W, high energy efficiency
Easy installation, plug-and-play
Technical Parameters:
Material: Aluminum alloy + PC
Color Temperature: 4000K / 6500K
Luminous Efficacy: 160 LM/W
Color Rendering Index (CRI): >80
Beam Angle: 80°
Power Factor: 0.5
Chromaticity Difference:<5
Operating Temperature: -25°C ~ 45°C
Ingress Protection Rating: IP20
Lifetime: 50,000 hours (L70)
Inquiry

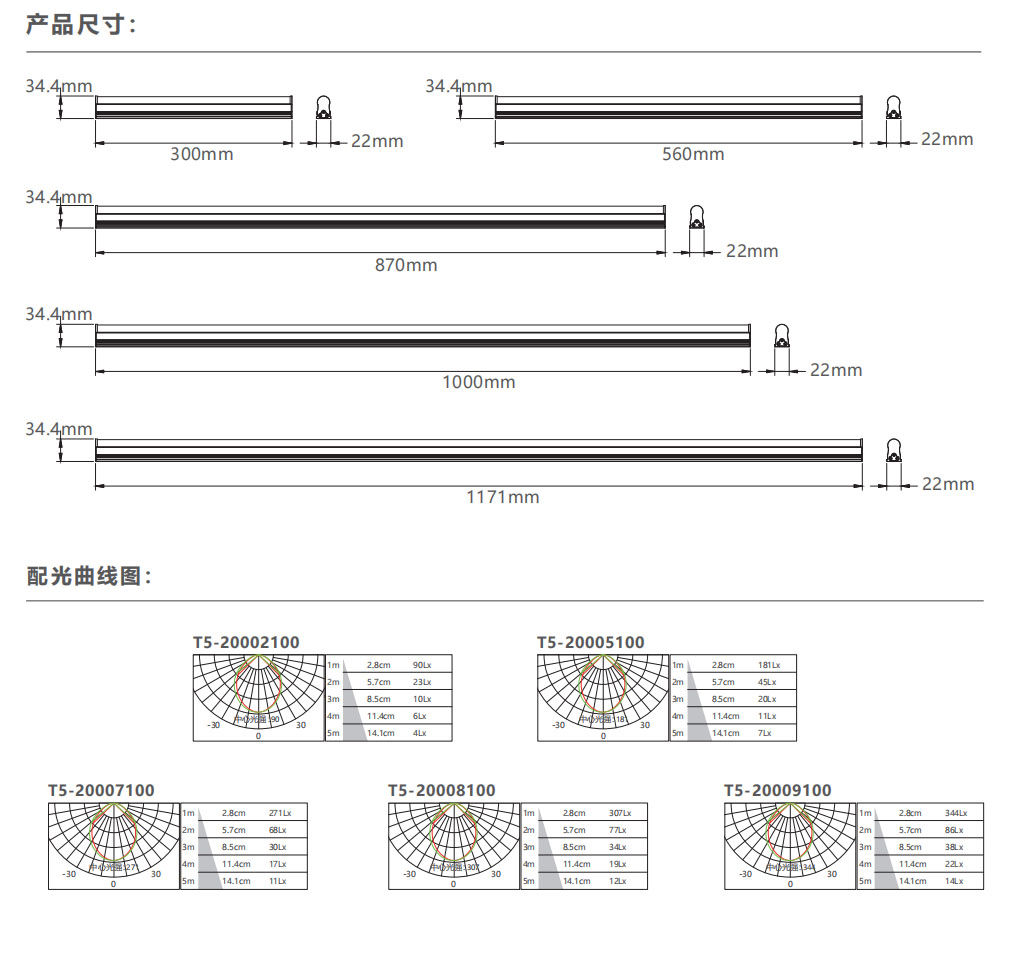

Data Drawing
Model No.PowerSizemmEfficacyLM/WTotal Luminous FluxLMPower FactorCRI
T5-200021002.5W310×22.5×36160400>0.5>80
T5-200051005W570×22.5×36160800>0.5>80
T5-200071007.5W870×22.5×361601200>0.5>80
T5-200081008.5W1000×22.5×361601360>0.5>80
T5-200091009.5W1170×22.5×361601520>0.5>80
