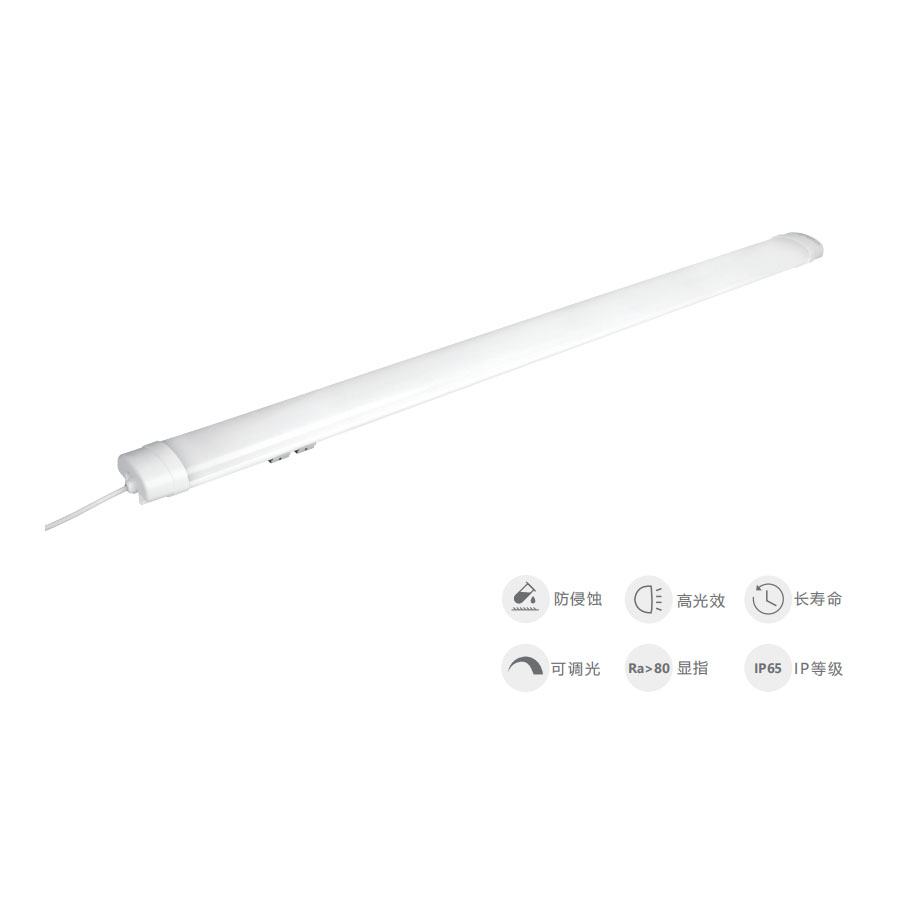

LED three proof bracket
The product adopts an integrated built-in driver design, with an IP 65 high protection level and meets the requirements of cleanliness and anti-corrosion WF2. It has multiple installation methods and is suitable for the industrial lighting field.
Product Features:
Integrated PC tube extrusion, full lamp protection rating IP65
Smooth arc design with no airflow disturbance
High luminous efficacy up to 160 lm/W, energy-saving
Hidden buckle design for a flat and seamless fit
Technical Parameters:
Material: Full PC
Color Temperature: 4000K / 6500K
Luminous Efficacy: 160 lm/W
Color Rendering Index: >80
Beam Angle: 110°
Power Factor: 0.9
Color Tolerance:<5
Operating Temperature: -25°C to 45°C
Protection Rating: IP65
Lifespan: 50,000 hours (L70)
Inquiry

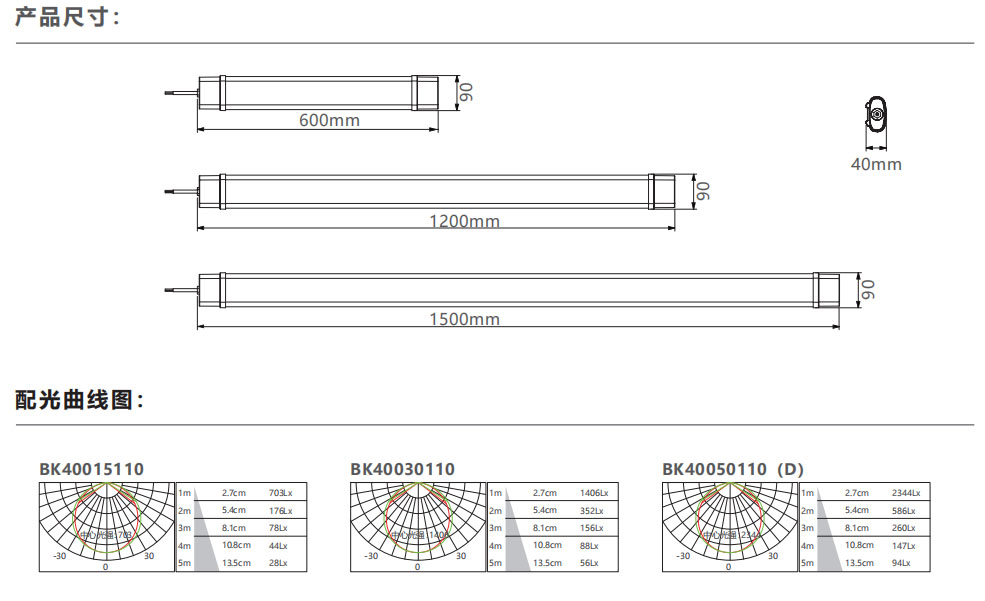

Data Drawing
Model No.PowerEfficacyLM/WTotal Luminous FluxLMLengthMMCRIFunction
BK4001511015W1601600600×90×40>80Non-dimmable
BK4003011030W16016001200×90×40>80Non-dimmable
BK4005011050W16028801500×90×40>80Non-dimmable
BK40015110 (D)15W1601600600×90×40>800-100% Wireless Dimmable
BK40030110 (D)30W16016001200×90×40>800-100% Wireless Dimmable
BK40050110 (D)50W16028801500×90×40>800-100% Wireless Dimmable
