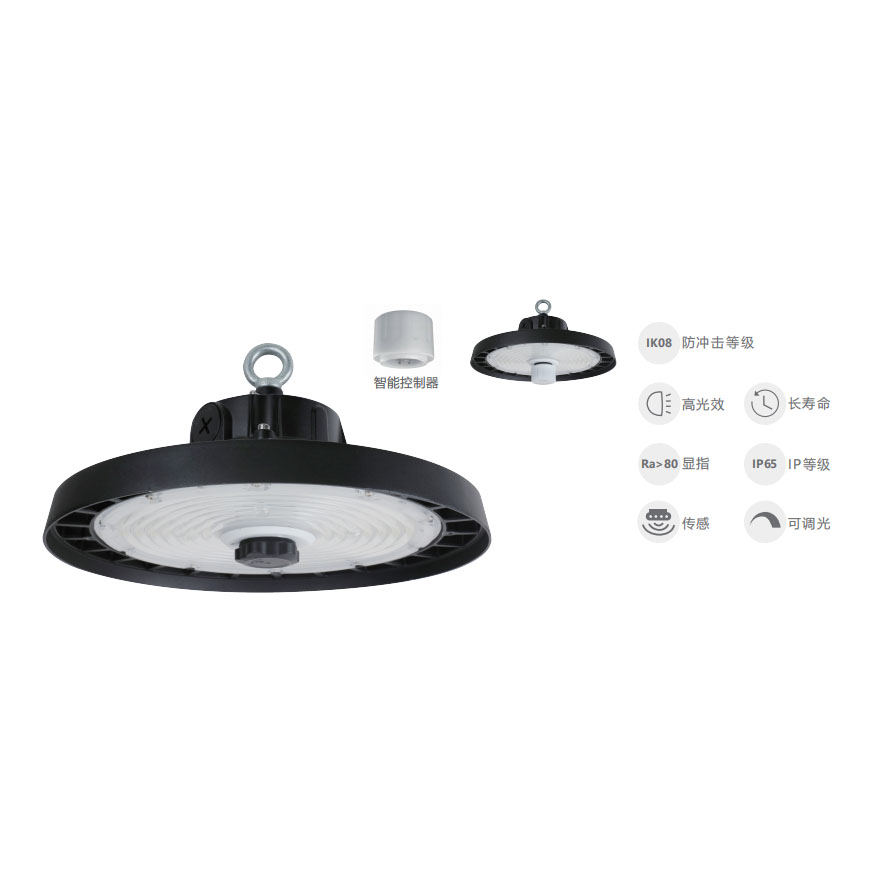

LED mining lamp

Specially designed for industrial lighting, this energy-saving and efficient lighting fixture features an integrated aluminum die-casting shell and high-quality LED light source. It has the characteristics of high brightness, long lifespan, and low energy consumption, and is suitable for large indoor and outdoor places such as factory workshops, warehouses, sports halls, and parking lots.

Product Features:

Full die-cast aluminum heatsink with high heat dissipation performance
IP 65, IK 08, WF 2 luminaire protection rating, suitable for harsh environments such as high temperature and high humidity
Light efficacy 180 lm/W, high efficiency and energy saving
Full series equipped with ZHAGA interface, multiple control options available
Rich optional accessories: hook / pendant rod / bracket / lampshade

Technical Parameters:

Material: Aluminum alloy + PC
Color Temperature: 6500K
Luminaire Efficacy: 180 LM/W
Color Rendering Index (CRI): >80
Beam Angle: 60°, 90°
Power Factor: >0.9
Color Tolerance:<5
Operating Temperature: -25°C ~ 50°C
Protection Rating: IP 65, IK 08
Lifetime: 50,000 hours (L70) @ 35°C

Inquiry

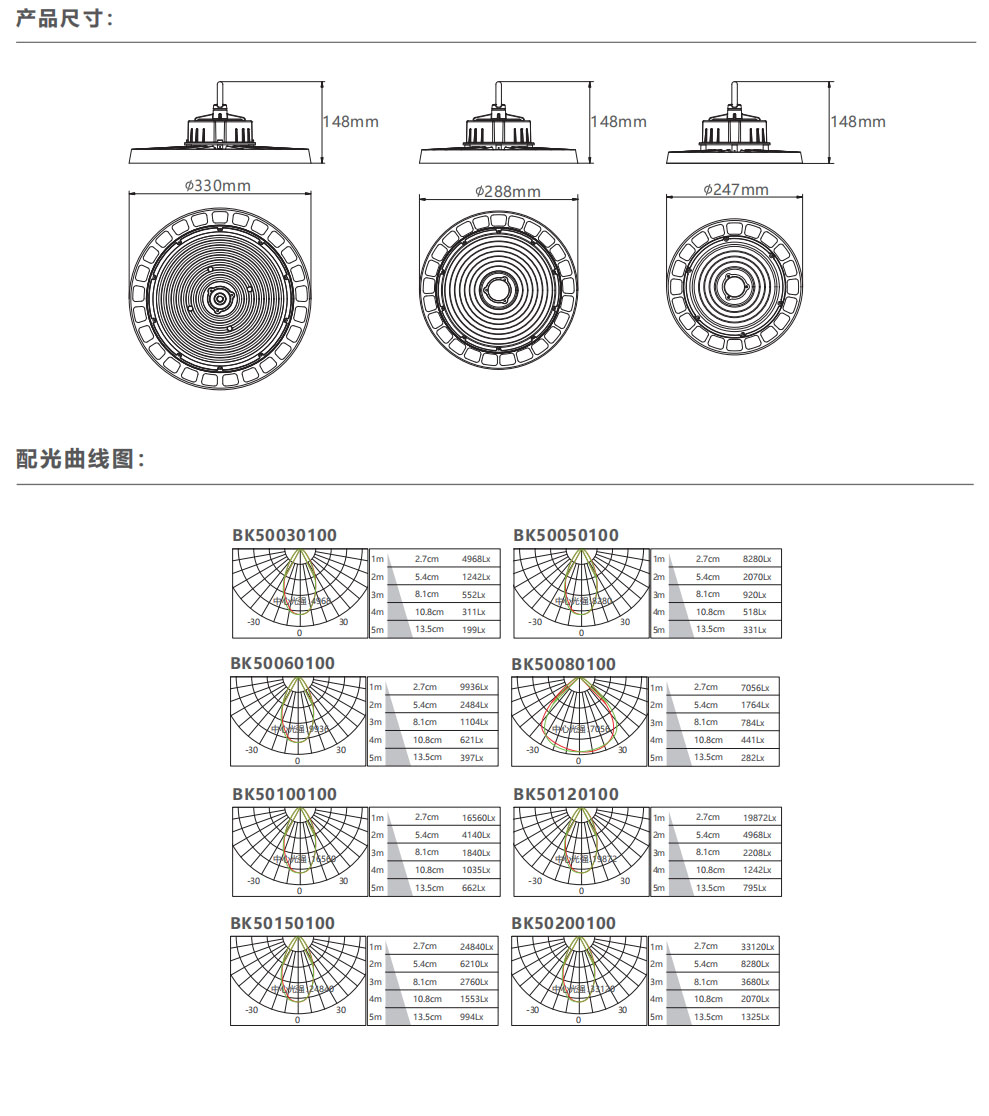

Model No.	Power	Efficacy_LM/W	Total Luminous Flux_LM	Power Factor	Beam Angle	Dimensions_MM	Function
BK50030100	30W	180	5400	>0.95	60°/90°	φ243*H108	Non-dimmable / ZIGBEE Dimmable + Sensor
BK50050100	50W	180	9000	>0.95	60°/90°	φ243*H108	Non-dimmable / ZIGBEE Dimmable + Sensor
BK50060100	60W	180	10800	>0.95	60°/90°	φ243*H108	Non-dimmable / ZIGBEE Dimmable + Sensor
BK50080100	80W	180	14400	>0.95	60°/90°	φ243*H108	Non-dimmable / ZIGBEE Dimmable + Sensor
BK50100100	100W	180	19200	>0.95	60°/90°	φ289*H108	Non-dimmable / ZIGBEE Dimmable + Sensor
BK50120100	120W	180	21600	>0.95	60°/90°	φ289*H108	Non-dimmable / ZIGBEE Dimmable + Sensor
BK50150100	150W	180	27000	>0.95	60°/90°	φ289*H108	Non-dimmable / ZIGBEE Dimmable + Sensor
BK50200100	200W	180	36000	>0.95	60°/90°	φ326*H108	Non-dimmable / ZIGBEE Dimmable + Sensor
